Temp sensor temperature sensor
Description
A temperature sensor is an electronic device that measures the
temperature of its environment and converts the input data into
electronic data to record, monitor, or signal temperature changes.
There are many different types of temperature sensors. Some
temperature sensors require
direct contact with the physical object that is being monitored (contact
temperature sensors), while others indirectly measure the
temperature of an object (non-contact temperature sensors).
KTS130 series bundled sensor is a low-cost temperature sensor
specially designed for pipeline surface temperature measurement. It
is suitable for temperature measurement in various applications.
Feature
- Range from -40 to +200°C
- Resistance output
- Standard accuracy, see table
- Protection class: IP65 / NEMA 4
Application
KTS120 temperature transmitter used for temperature measurement in
heating, ventilation and air conditioning systems enabling
weather-dependent temperature regulation.
Technical Data
| Model | KTS130 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) |
| NTC 10k B3950 Accuracy B:3989K±1% |
| NTC 10k B3435 Accuracy B:3435K±1% |
| NTC 1k Accuracy B:3500K±1% |
| NTC 2k Accuracy B:3977K±0.3% |
| Response Time | <1min / < 30s, measuring the liquid in the pipeline |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -30...+ 70℃ (body) / -30...+ 200℃(probe) |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
Notes On Disposal
Product Certification

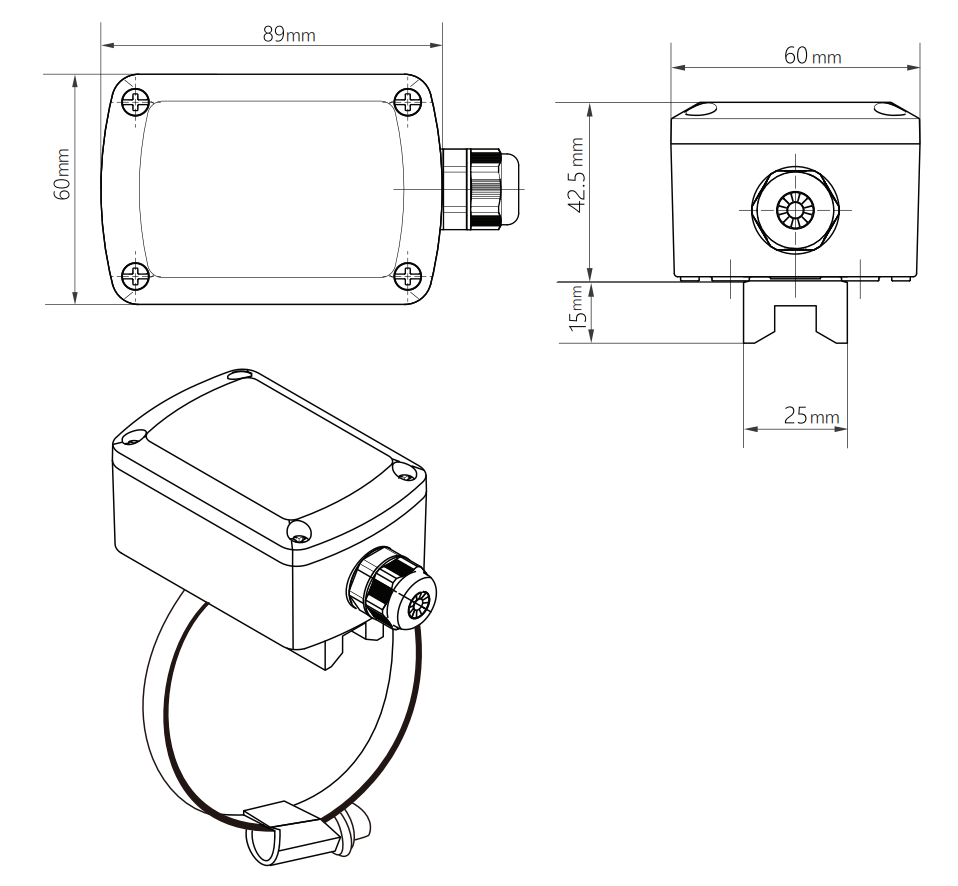

Dimensions(mm)
Ordering Guide
KTS130- Element-Hous Clamp
| Model | Element | House Clamp |
| KTS130 | PT100 Class A | (1) | S-250MM | (V) |
| PT1000 Class A | (2) | S-400MM | (W) |
| NTC 10k B395 | (3) | S-600MM | (X) |
| NTC 10k B3435 | (4) | S-800MM | (Y) |
| NTC 1k | (5) | S-10000MM | (Z) |
| NTC 2k | (6) | | |
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order,
generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
