LCD display differential pressure transmitter
Description
The basic principle of differential pressure transmitter The
differential pressure from the double-sided pressure guiding pipe
directly acts on the double-sided isolation diaphragm of the
transmitter sensor, and is transmitted to the measuring element
through the sealing liquid in the diaphragm, and the measuring
element will measure the difference. The voltage signal is
converted into a corresponding electrical signal and transmitted to
the converter, and becomes a standard electrical signal output
after processing such as amplification.

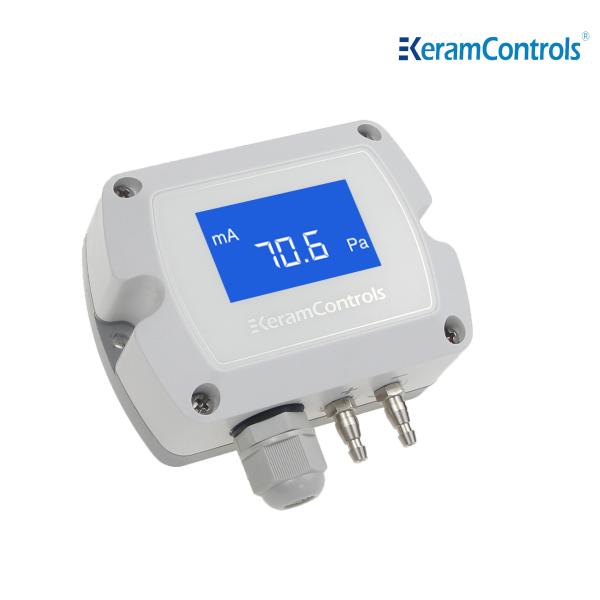

The KDP210 series differential pressure transmitter is a
transmitter specially designed for differential pressure
measurement. It is equipped with a backlit display, which can
monitor the changes of data well. However, it should be noted that
the storage temperature of this equipment needs to be within
-40~+60 °C, otherwise it will affect the life of the equipment.
Feature
- Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
- Auto zero manual calibration
- Voltage, current, digital signal output
- Standard accuracy <±1% FS
- IP65 house protection
Application
- HVAC system
- Pharmaceutical clean rooms
- Electronic clean rooms
- Medical clean rooms
- Commercial buildings
- Public transport hub
Technical data
| Model | KDP210 |
| Measurement Units | Pa,mmH2O,inWG,mmHG,KPa,mbar |
| Accuracy | <±1% FS@-5 to +65℃ |
| Response Time | 0.5s |
| Repeat Stability | ±0.01 % at FS /Year |
| Resolution | 0.1 Pa; 0.1 mmH2O; 0.01mbar; 0.01mmHG |
| Media | Air and neutral gases |
| Operating Temperature | -20…+70℃ |
| Storage Temperature | -40…+60℃ |
| Power Consumption | ＜1.5W |
| Tolerated over pressure | x15 |
| Power Supply | 16~30VAC/DC (3wire) / 18~30VDC (2wire) |
| Output Signal | 4-20mA(2wire) |
| 4-20mA(3wire) |
| 0~5V/0~10VDC(3wire) |
| RS-485 |
| Customized |
| Auto Zero | Manual calibration |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA4 |
| Display | Backlight LCD display(4-20mA 2 wire without backlight) |
| Cable Gland | M16*1.5 |
Dimension(mm)
Measuring range adjustment
Output setting(3 wire Model)
Manual Zero-point correction
Ordering guide
KDP210-Range-display-output
| Model | Ranges | Display | output |
| KDP210 | -100~+100Pa | (1) | LCD backlight | (D) | 4-20mA(2 wire) | (E) |
| -1000~+1000Pa | (2) | | | 4-20mA(3 wire) | (F) |
| -2000~+2000Pa | (3) | | | 0-5/0-10VDC (3 wire) | (G) |
| -10000~+10000Pa | (4) | | | RS-485 | (H) |
| | | | Customized | |
